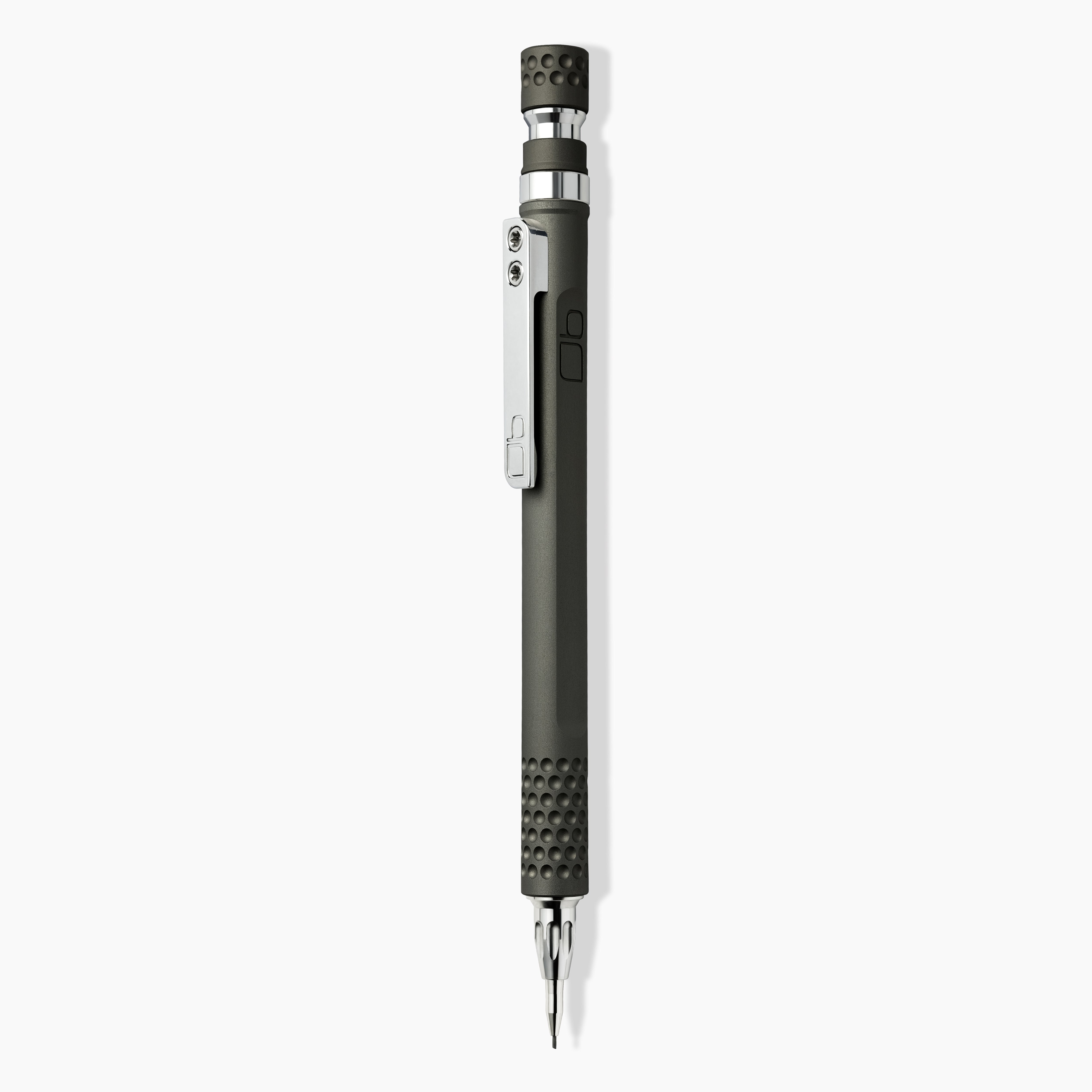

V1.0 Mechanical Pencil - Grey
COMING SOON...
Welcome to a range of contemporary writing instruments featuring outstanding styling and utilizing the finest materials, manufactured to the highest standards.
Instrument bodies are precision Swiss CNC machined from 7075-T6 aerospace grade aluminum alloy and hardcoat anodized type 3, class 2, deep black, grey or clear to MIL-A-8625 standards for enhanced corrosion and wear resistance.
Other component parts are Swiss CNC machined from 17-4 PH (Precipitation Hardened H900 condition) stainless steel which is subsequently tumbled and then hand polished.
This stainless steel is best suited for extreme precision machining, the H900 hardness condition means the material has tremendous wear resistance too.

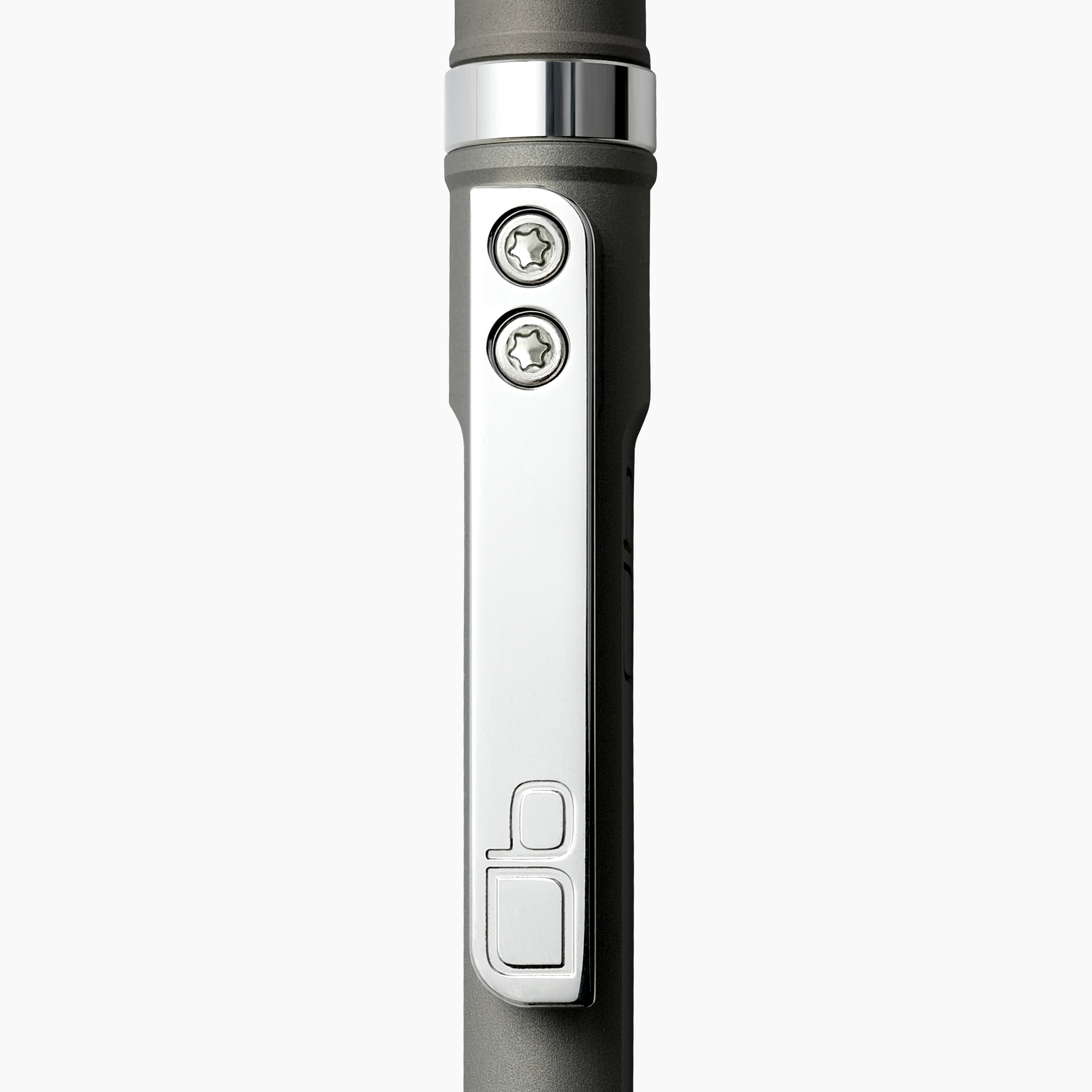

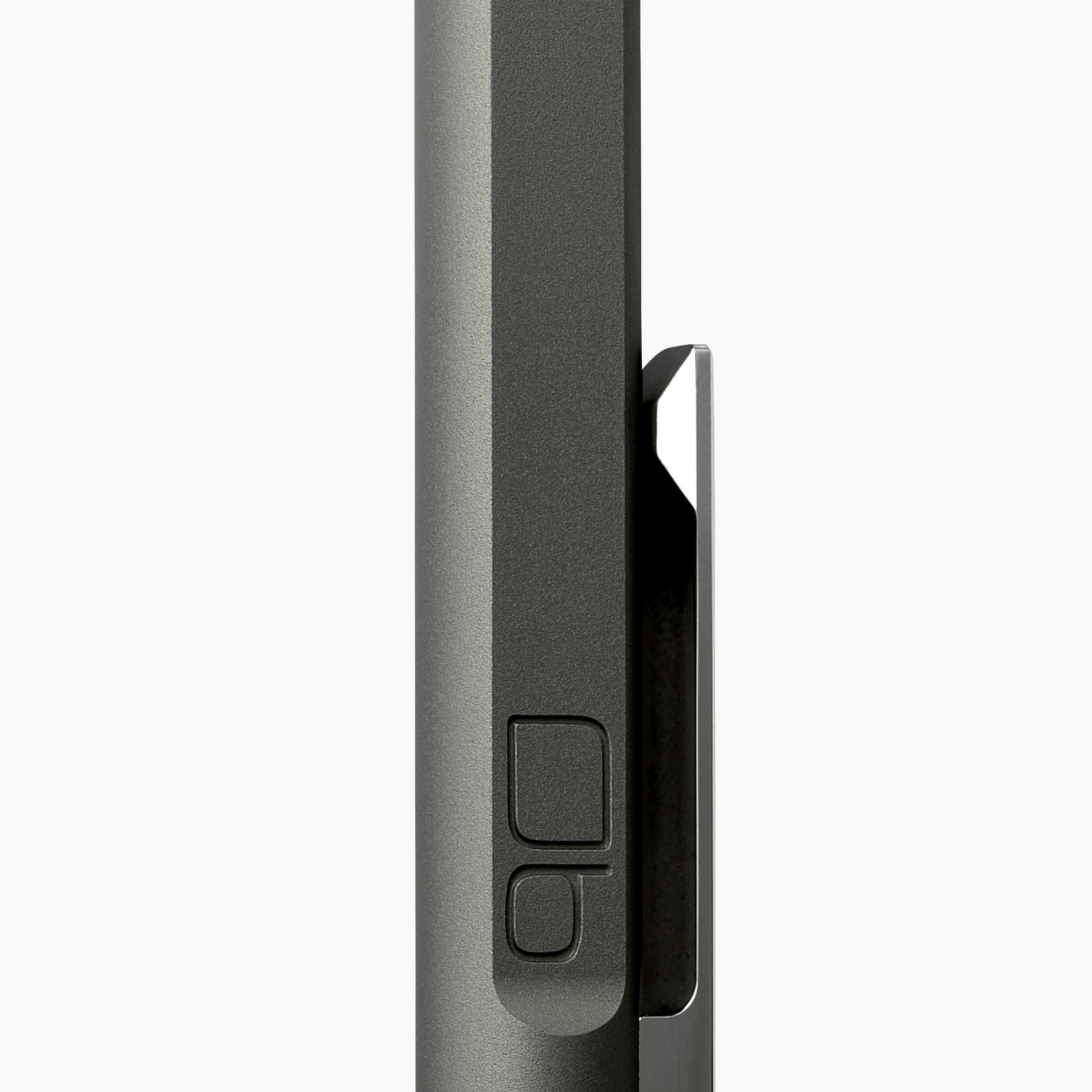

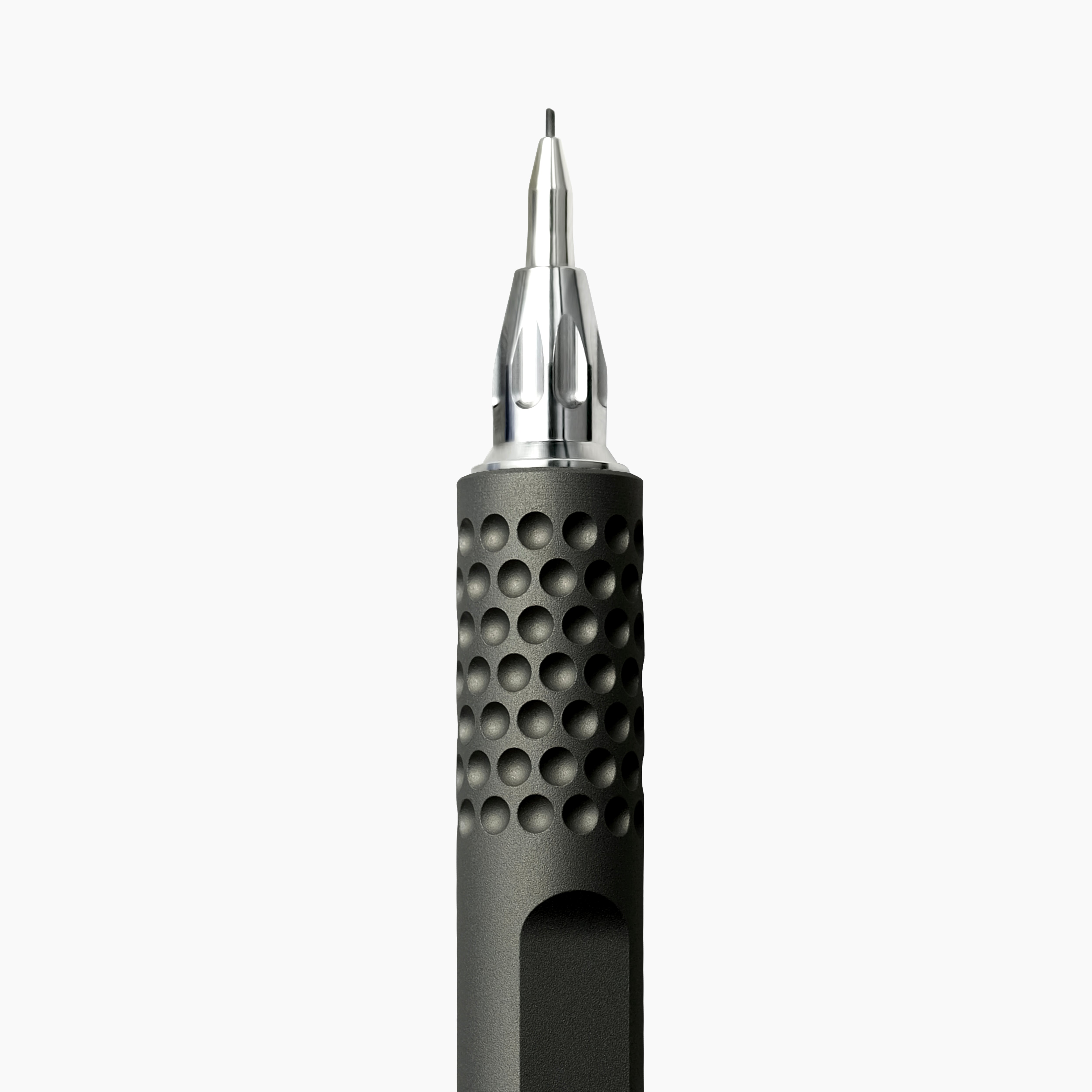

The V1.0 instrument body is design to offer the most comfortable and ergonomic writing or drawing experience and features a dimpled grip area at the nose with relief cuts along the sides that flow into the clip and rear styling bezel area.
The V1.0 Mechanical Pencil utilizes the Schmidt DSM2007 mechanism and is available in two lead sizes, 0.5mm and 0.7mm

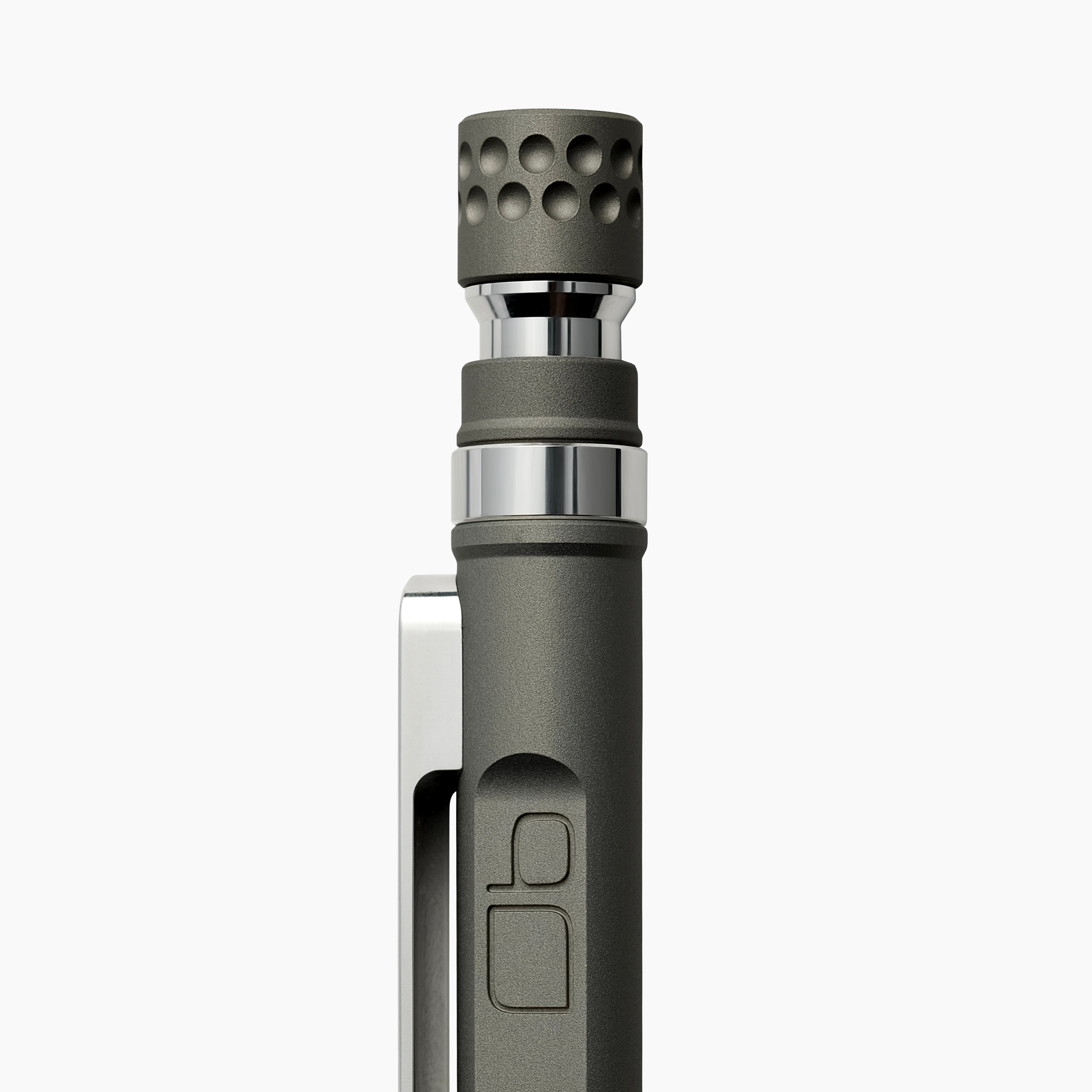

The end cap of the pencil is threaded and can be removed to access the pencil's built in eraser.
The propelling mechanism features a clearing rod situated on the internal end cap.
Please select the desired lead size from the dropdown at time of ordering.
The Pencil ships with 2-3 High-Polymer HB leads already installed and additional leads can be purchased from the store.
High-Polymer HB (Hard Black) leads give a good balance of Polymer to Graphite and offer a dark marking line that is still hard enough to keep a sharp point while offering a smooth writing or drawing experience.
High-Polymer HB (Hard Black) leads give a good balance of Polymer to Graphite and offer a dark marking line that is still hard enough to keep a sharp point while offering a smooth writing or drawing experience.
Lifetime Warranty.
Designed by Ob Precision in London, England, Manufactured and Assembled in Fort Worth, Texas, USA.Refills manufactured by Schmidt Technology GmbH, Georgen, Black Forest, Germany.
Features
Writing System
Dimensions
